  Model:MIC-8A32
  Overview:
  MIC-7A32/8A32 series distribution amplifier adopts push-pull amplifier module,advanced circuitry design to ensure excellent performance.It is widely applied to the distribution network of CATV.
  Features:
  ●Adopts push-pull amplifier module which is characterized by reliability and high proportion of performance and value.
  ●Built-in modulated equalizer and modulated attenuator,convenient to debug.
  ●AC220V or AC60V power-supply is optional.
  ●Die-cast aluminum housing,high-reliable linearity power supply and efficient lightning-proof measure.

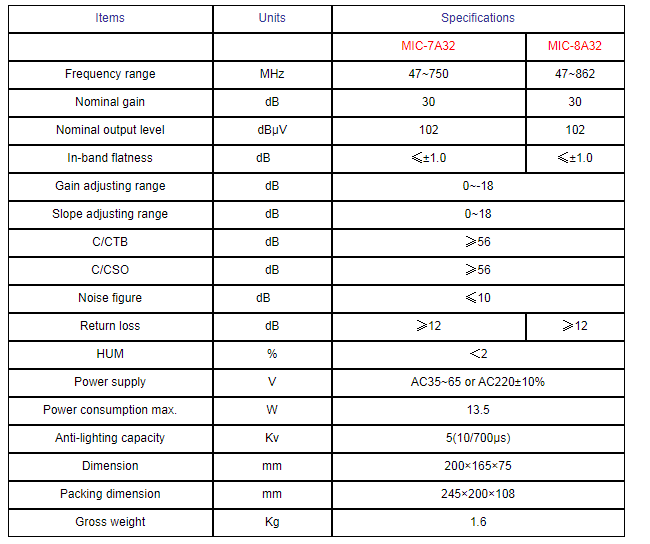

  Specifications:

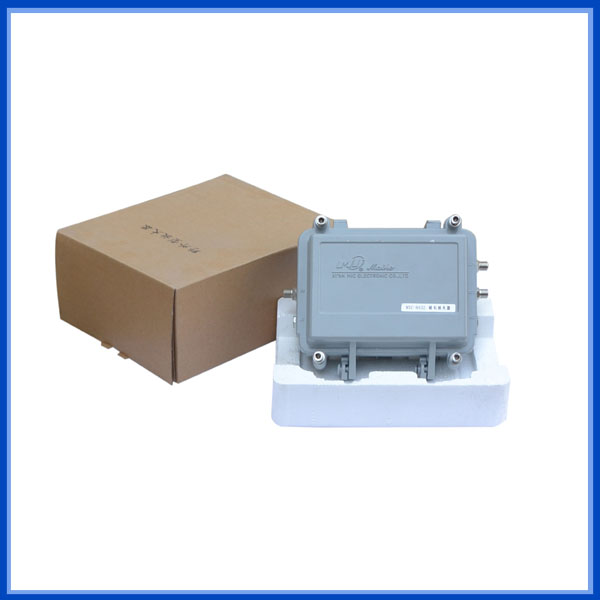

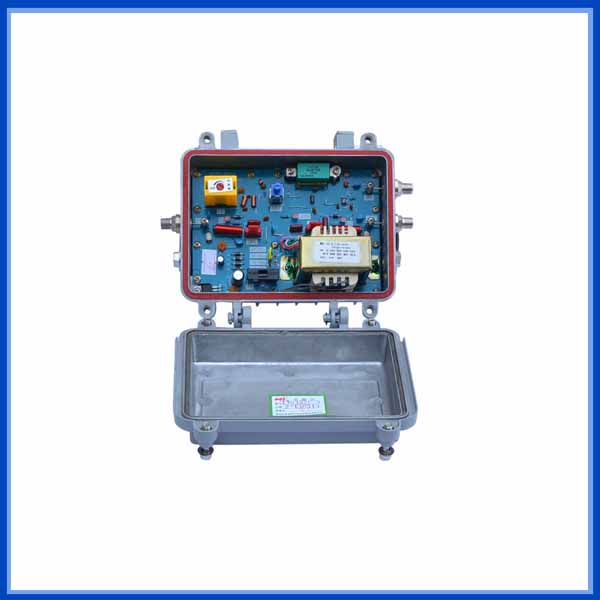

  Photos for reference:
