High Power Optical Fiber Amplifier

  • Product model:MIC-HA2136-16
  • Input port:1
  • Output port:8, 16, 32, 64
  • Optical connector type:C/APC, FC/APC, SC/UPC, FC/UPC, LC/APC, LC/UPC
  • Power supply:AC220V or DC48V
  • Total output optical power:27~40dBm


MIC-HA21 series high power fiber amplifier adopts unique intelligent temperature-control system; Adopted special temperature-control chip can make the equipment heating volume reduce by 30% compared with conventional circuit. Special heat-dissipating fan channel design can ensure the perfect temperature stability, meanwhile powerful fan will start to work when the whole machine temperature is higher than 40℃, and will stop when temperature is lower than 36℃, which ensure the heat-stability of the system and long-life of fan.


  ◆2U,19″standard case,easy installation.

  ◆Extra high power output up to 10W,one set can drive 3000~6000 pieces optical node.

  ◆Low noise figure:lower than 5dB when input is 0dBm.

  ◆Very low CSO deterioration:<-65 dB.

  ◆multiple output port of 4,8,16,32,64.

  ◆Large LED screen display.

  ◆Built-in network management transponder complying with SNMP protocol,which can achieve remote control for the equipment.

  ◆Intelligent temperature-control system:adopting special temperature-control chip,compared to regular product,heat-dissipating and consumption reduce by 25%.

  ◆Adjustable output power:Output optical power adjustable range(downward 3dB).

  ◆1310nm,1490nm,1550nm WDM(Optional)can be integrated.

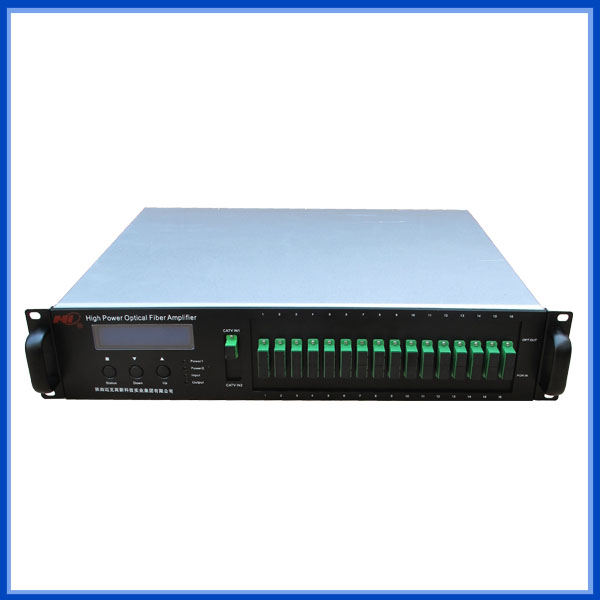

Photos for reference:
