Optical Transmission Platform

Optical transmission platform
  Model:MIC-OTP3000
  Overview:
  MIC-OTP3000 is a kind of wideband opto-electricity transmission platform,which is characterized by good generality,high installation density,powerful function,flexible combination and various telecommunication management modes.The platform basic configurations are fan cooling configuration,status display and monitor unit,and single power supply module.There are several application modules optional,including forward optical transmission,forward optical receiving,reverse optical receiving,EDFA,optical switch,RF switch,,forward driving amplifying and power supply module.
  Features:
  ●19”(3RU)standard chassis,it can save space and be easy to install.
  ●Each chassis has 12 slots with completely same function and shape,and each application module can be installed randomly.
  ●Open-rack design and the overall duct-type design of application module can be easy to dissipate heat in maximum,to improve the unit’s reliability.
  ●Post-cooling fan can be no stopping to exchange in the scene so as to repair and maintain.
  ●Intelligent status focuses on monitoring units,real-timely monitors each module’s operation parameter inside the rack,and realizes automatic sound and light alarm in sudden fault.
  ●Standard RJ45 network management telecommunication interface,which can be easy to realize remote central monitor.

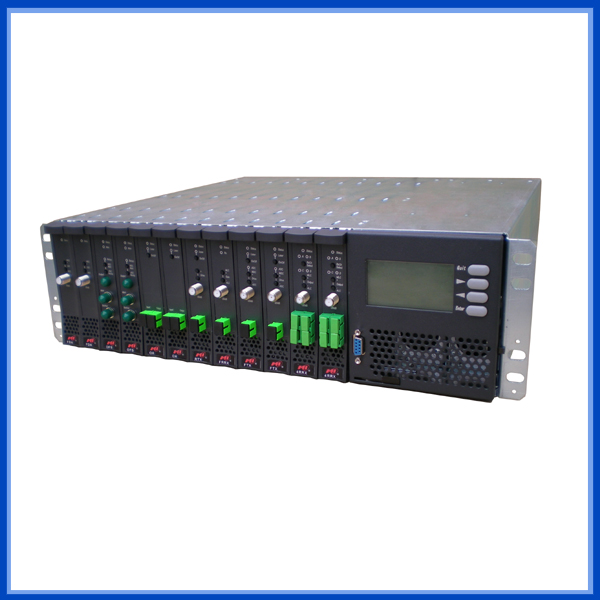

  Photos for reference:

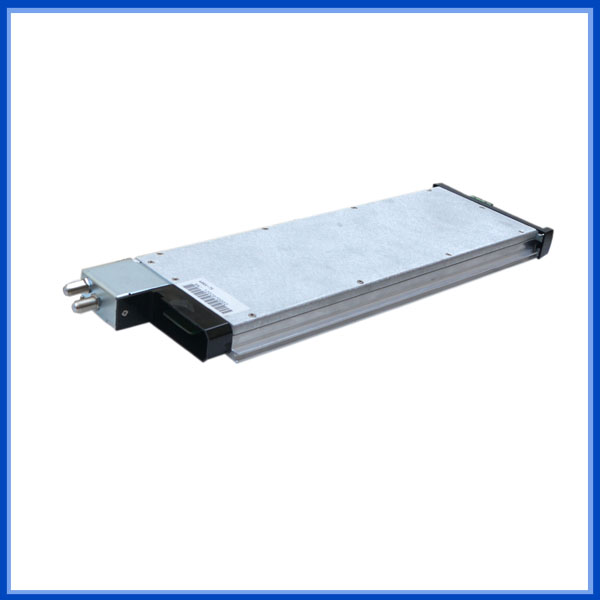

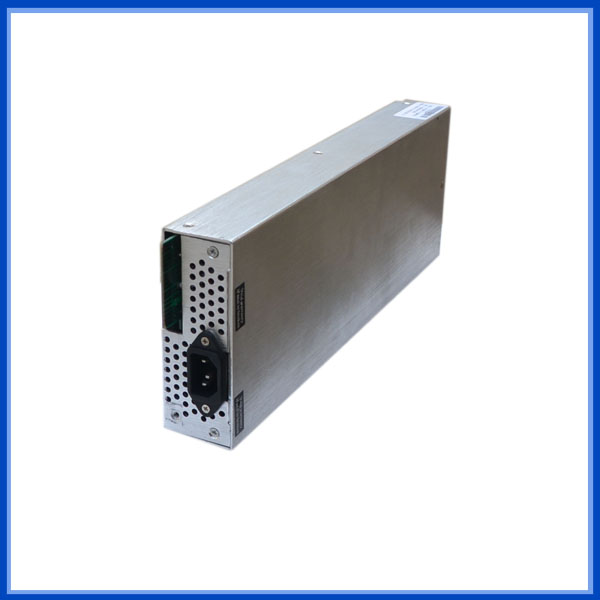

  1.PS310 power supply module
  Features:
  PS310 series power supply is a high-reliability power supply system of latest switch power structure,which has small volume,high efficiency energy conversion,small interference harmonic and large output power characteristics.The input power can be converted into+24DC,+5DC and-5DC and provide to a system rack application module for use.It can be configured two PS310 power supply modules at most inside the rack to operate in the mode of online hot backup.

  Photos for reference:

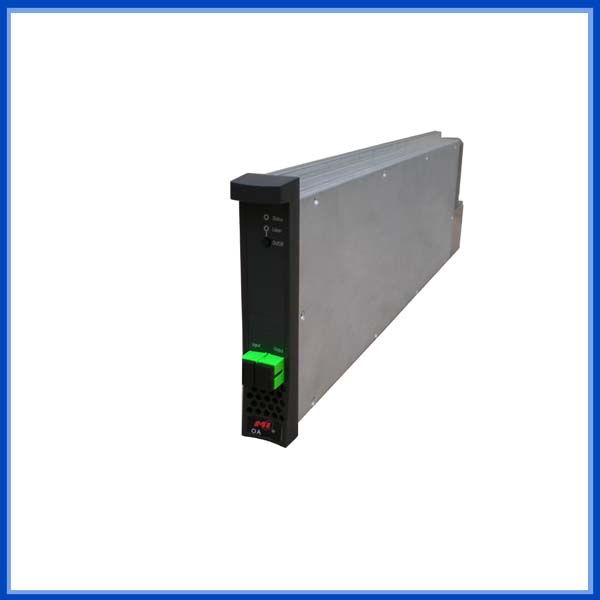

  2.OA series EDFA module
  Features:
  ●Adopts 980nm pump laser and high-performance erbium doped fiber optimized combination,with low noise figure and good stability.
  ●With output optical power adjustable function,4dB output power adjustable range,0.1dB adjusting step,easy to debug and equipment backup.
  ●The whole unit status and pump laser operation status adopts tricolor LED auxiliary instruction separately.
  ●Push-pull type module design,small and compact appearance,flexible and convenient loading and unloading.
  ●The duct-type design of whole housing improves the unit’s reliability greatly.

  Photos for reference:

  3.FTX series forward optical transmission module
  Features
  ●Optional high-performance DFB laser,narrow spectral line,good linearity and high output power(the maximum output power can be up to 30mW).
  ●Both main input and auxiliary input RF input port are in behind,the signal isolation between auxiliary input port and main input port is greater than 40dB.
  ●Power supply,laser operation status and RF driving level status adopt tricolor LED auxiliary instruction separately.
  ●Built-in changeable attenuator,RF driving level of laser can be adjusted manually or automatically.
  ●Advanced multi-frequency RF pre-distortion technology,all RF GaAs components and complete SMT structure improve the most important CTB and CSO index of CATV system efficiently,which makes C/N index get large improvement.
  ●Plug-in type module design,small and compact appearance,flexible and convenient loading and unloading.
  ●The whole housing of duct-type design improves the unit’s reliability greatly.

  Photos for reference:

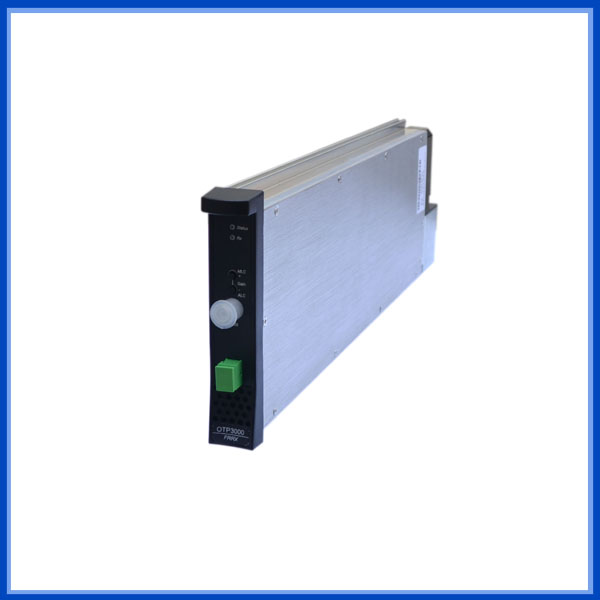

  4.FRRX series forward optical receiving module
  Features:
  ●RF output level of+4dB~-11.5dB,optional manual adjusting or automatic control function,and tricolor LED auxiliary instructing its operation status.
  ●Two optical receiving modules can be redundant backup receiver.
  ●RF output channel can be on or off through either manual control or network management software remote control.
  ●Plug-in type module design,small and compact appearance,flexible and convenient loading and unloading.
  ●The unit chassis of duct type design improves the unit’s reliability great.

  Photos for reference:

  5.4RRX series four-way reverse optical receiving module
  Features:
  ●Each standard module contains four-way separate reverse return optical receiving channel,and mixed into two-way RF output,which can be composed of four-way separate receiver or two pairs of mutual backup receiver for the subscriber to select.
  ●Optical link loss automatic compensation or output level manual control can be optional,optical input power changes 15dB,RF output level unchanged.
  ●Four-way optical signal receiving power status separately adopts tricolor LED auxiliary instruction.
  ●30dB output level manual adjusting range.
  ●Plug-in type module design,small and compact appearance,flexible and convenient loading and unloading.
  ●The unit chassis duct type design improves the unit’s reliability greatly.

  Photos for reference:

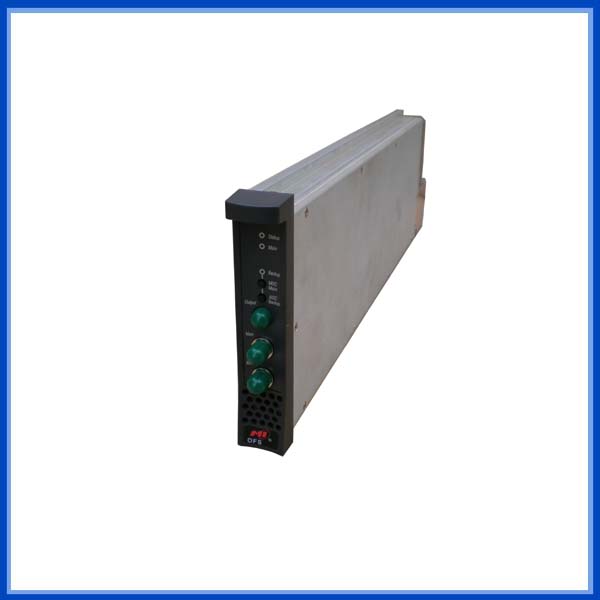

  6.OFS series optical switching switch module
  Features:
  ●Switching power threshold value can be adjusted in a larger range,the subscriber can adjust it in-12~+2dBm.
  ●The unit status,two-way input optical signal status separately adopts tricolor LED auxiliary instruction.
  ●Plug-in type module design,small and compact appearance,flexible and convenient loading and unloading.
  ●The unit chassis duct type design improves the unit’s reliability greatly.

  Photos for reference:
