Overview:
3U high power fiber amplifier is provided amplification product combined with CATV video business and broadband business for operator.
This product is mainly used to amplify CATV signal and then combine with GPON signal.
Features:
●3U,19″standard case,easy installation.
●Low noise figure:lower than 6dB when 0dBm input.
●8,16,32,64 multiple output ports optional.
●Adjust output level:output optical power adjustable range(downward 3dB).
●1310nm,1490nm,1550nm WDM(Optional)can be integrated.
●Built-in network management responder complying with SNMP protocol,which can achieve remote monitor for the equipment.
●Heat-dissipation fan adopts push-pull type structure,field replaceable.
Specifications:
Item | Unit | Parameter | ||
OLT pass wavelength | nm | 1310/1490 | ||
OLT pass wavelength loss | dB | ≤-1.0 | ||
CATV & OLT isolation | dB | ≥40 | ||
CATV Working wavelength | nm | 1535~1565 | ||
CATV input optic power | dBm | -5~+10 | ||
Total output power | dBm | 27~33 | 34~37 | 38~40 |
Noise figure | dB | ≤5.0 | ≤5.5 | ≤6.0 |
Output port number | 4、8、16、32、64 | |||
Each port output power | dBm | 10~23 | ||
Output power adjustable range | dB | -4.0 to +0.2 | ||
Output power stability | dB | ≤±0.2 | ||
Return loss | dB | ≥45 | ||
Pump leakage power | dBm | ≤-30 | ||
Polarization relevant gain | dB | ≤0.3 | ||
Polarization membrane dispersion | Ps/nm | ≤0.5 | ||
Optic Connector | SC/APC,FC/APC or LC/APC | |||
Power Supply Voltage | V | AC110~265(50~60Hz)or DC48V | ||
Power Consumption | W | ≤55 | ≤120 | |
Working Temperature | ℃ | -5~+50 | ||
Max. Working Relevant Humidity | % | Max. 85%, no condensation | ||
Storage Temperature | ℃ | -40~+80 | ||
Outer size | mm | 483×440×88 | ||
Packing size | mm | 550×540×180 | ||
Net weight | Kg | 9.20 | ||
Total weight | Kg | 11.10 |

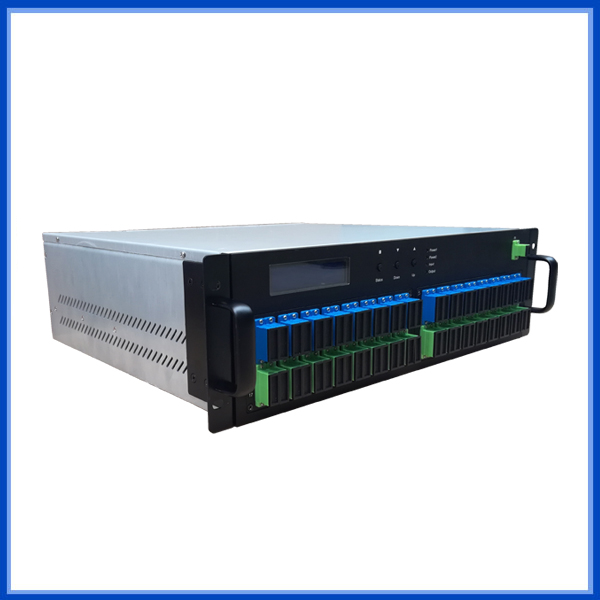

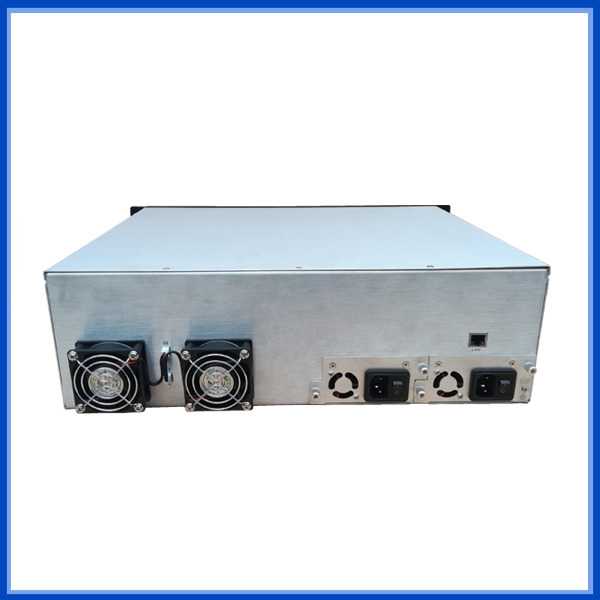

Product photos:
